Kolbus NM 101 (2023)

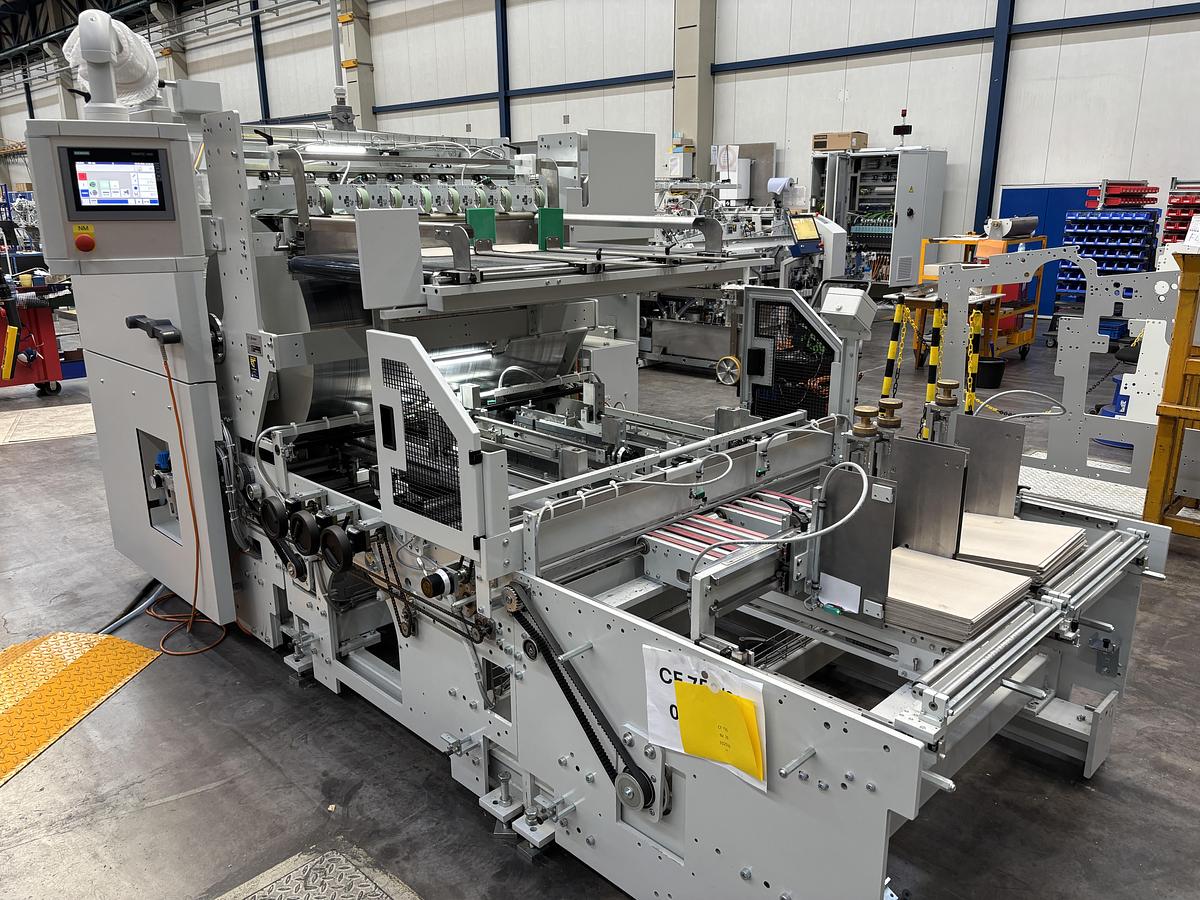

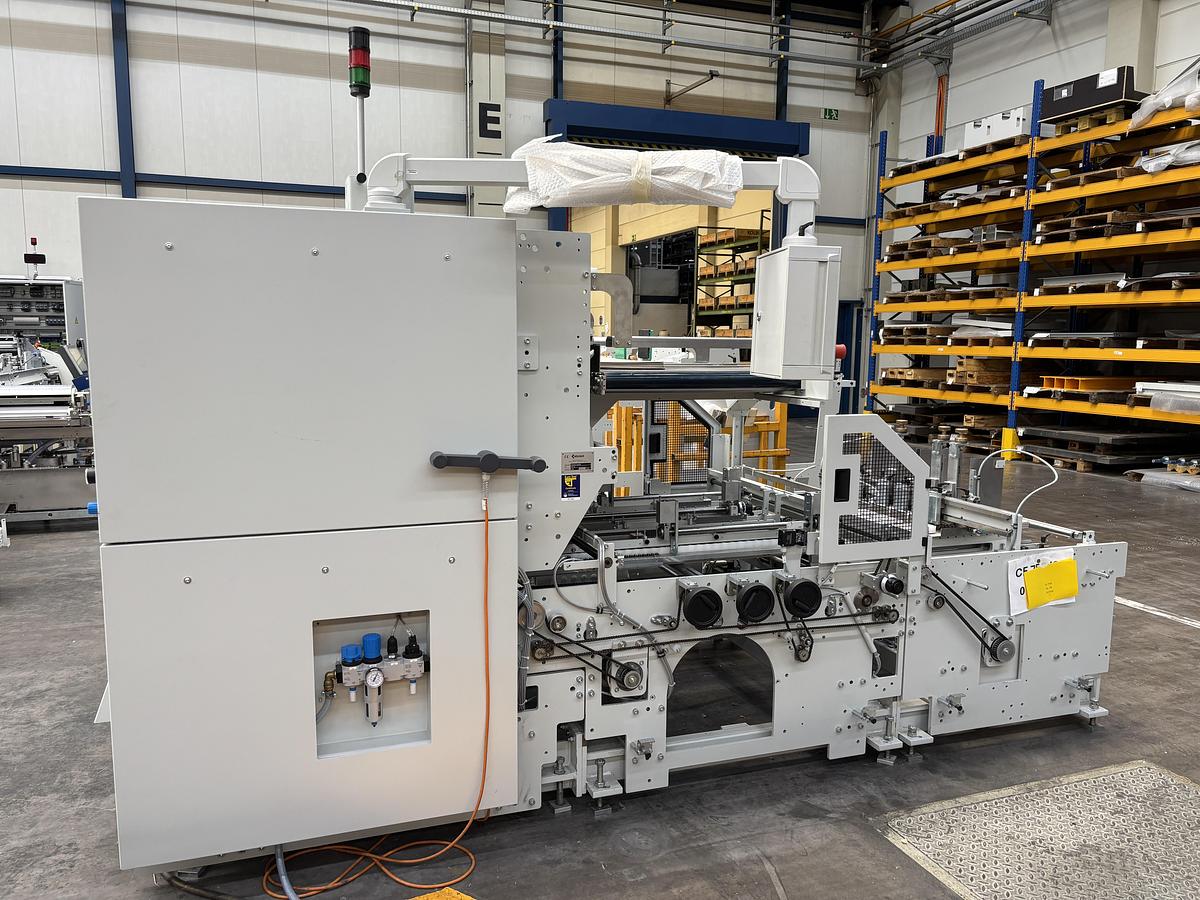

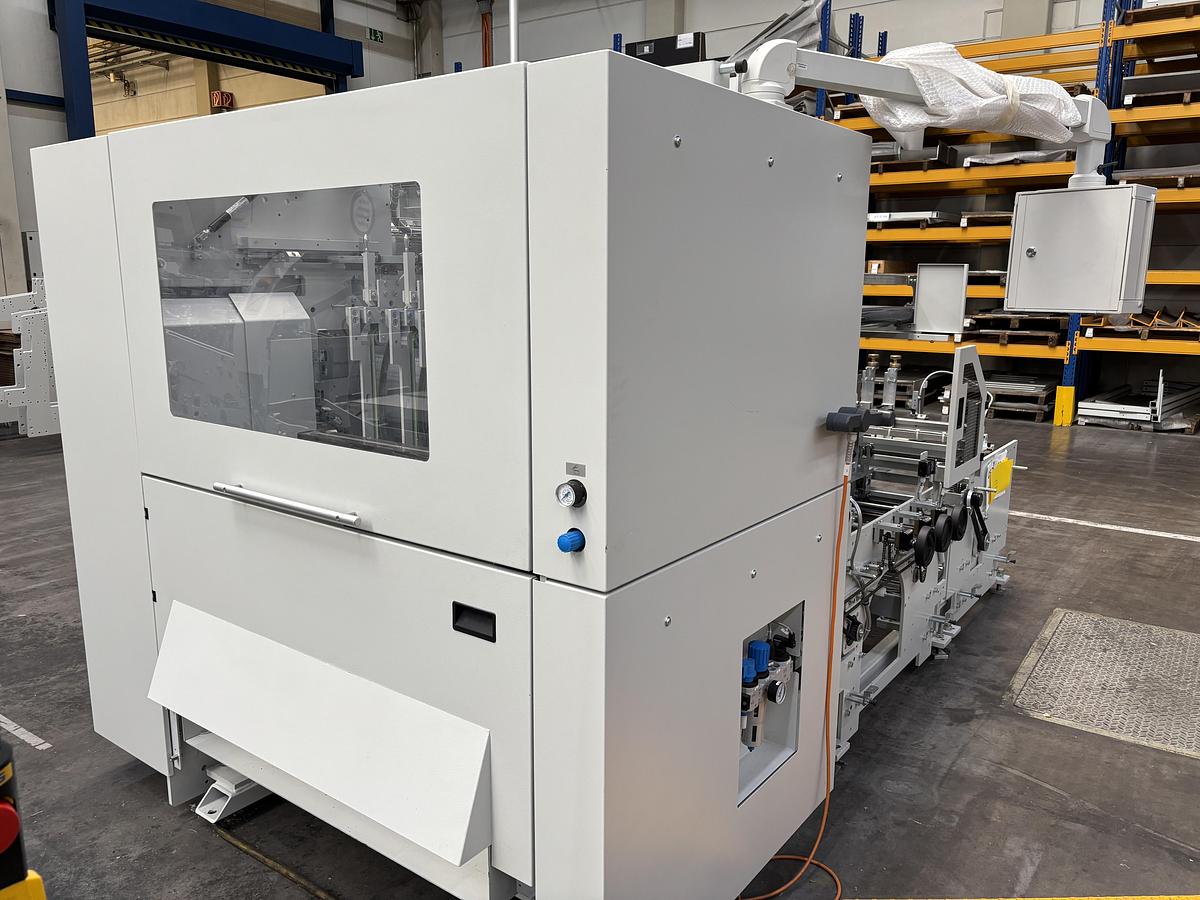

KOLBUS Grooving Machine NM 101

year 2023

For cutting grooves into cardboards.

Configuration:

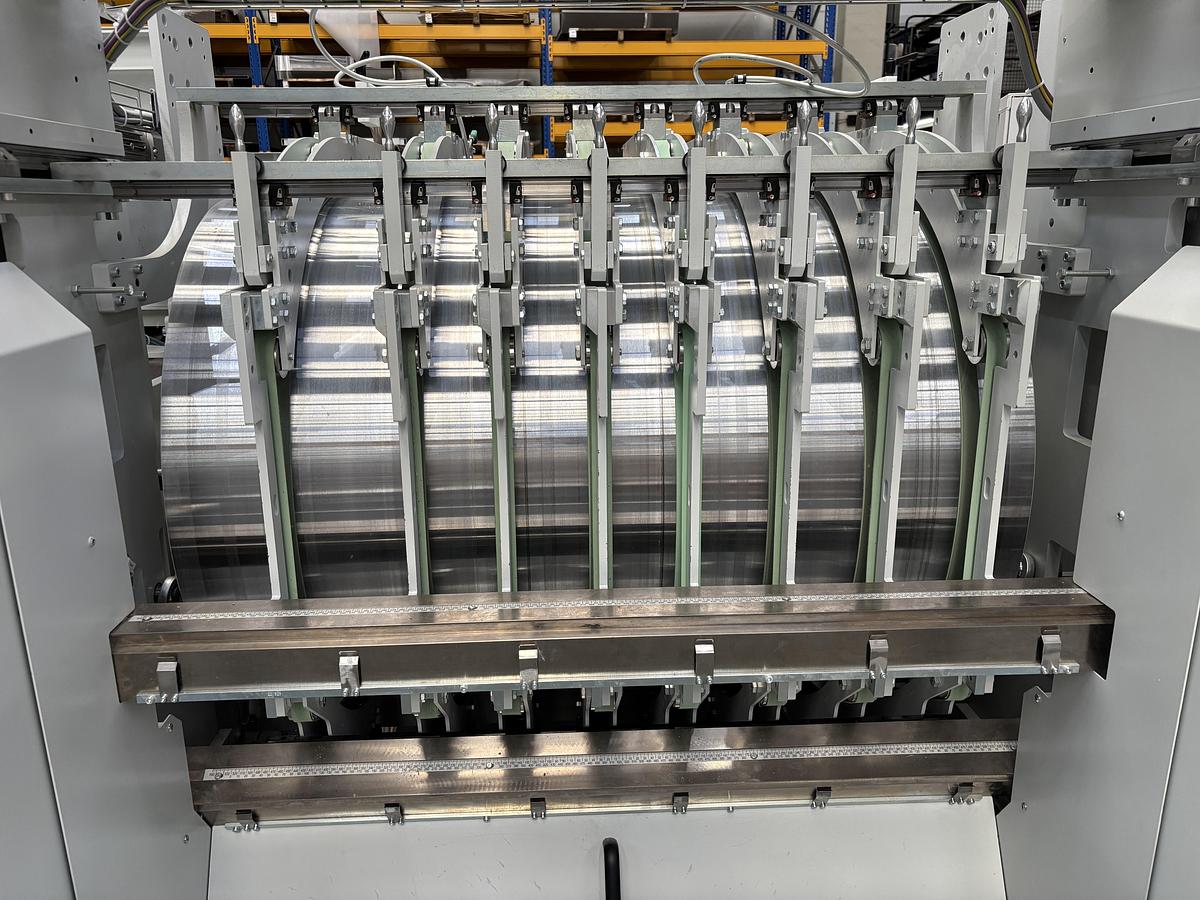

• adjustable knife mountings with knife head from 90° to 110° (2 pcs.)
• v-groove knife blades (16 pieces)
• setting device for the knife mountings
• stack/stream cover delivery by means of a conveyor belt
• automatic chip removal from the machine
• servo-controlled drive technology based on Siemens technology

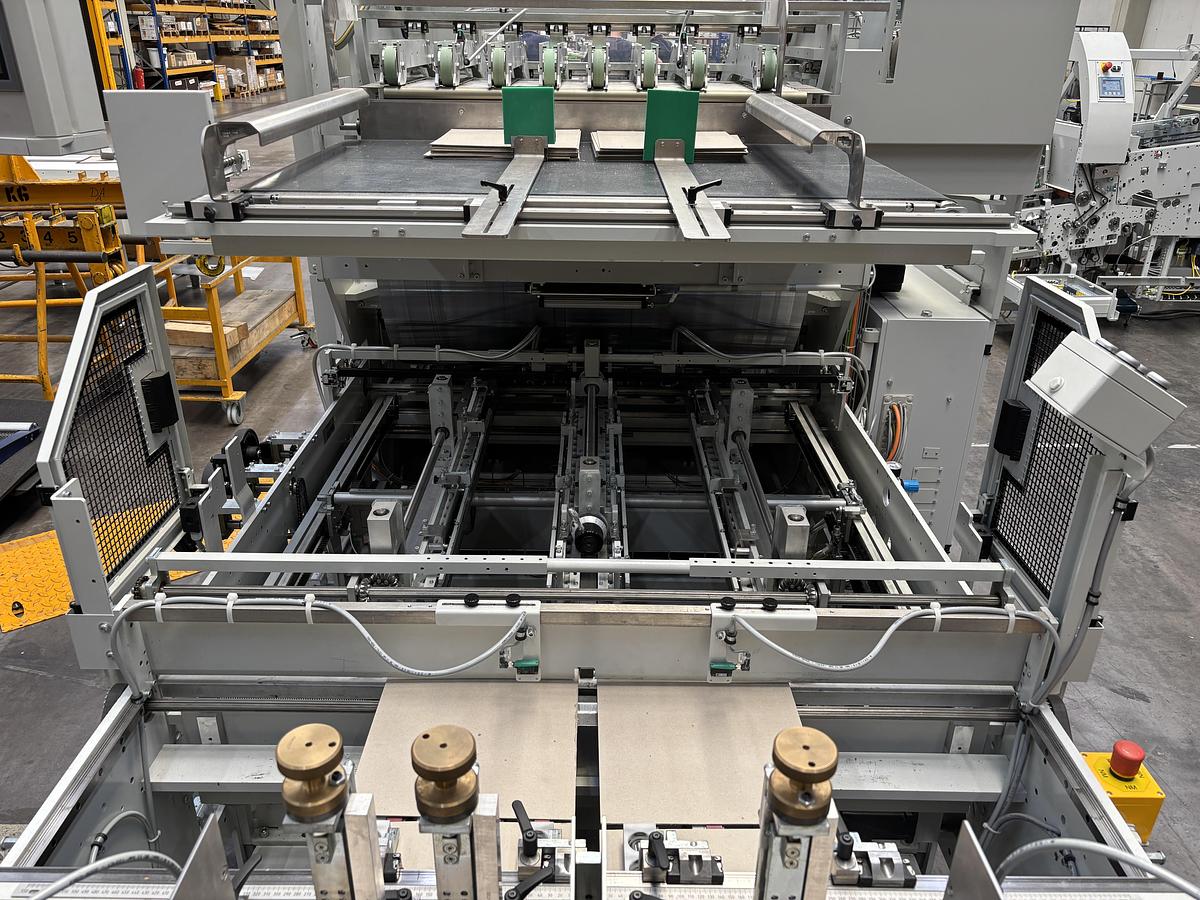

• infeed with cardboard feeder CF 750
• processing in the double magazine
• product outfeed with 1.500 mm roller conveyor
• digital display of the knife positions for one knife holder
• grinding device for sharpening the knives

Technical specifications:

number of grooves per operating step: 1 - 8 grooves in transport direction

cardboard thickness max.: 4 mm

cardboard thickness min.: 1 mm

distance between grooves (single cut) on 2 knife holders min.: 1 mm

distance between grooves on one knife holder min.: 40 mm

spacing from the first groove to the outer edge of the cardboard min.: 15 mm
