Kolbus cloth cutter KS 601 (2024)

Kolbus cloth cutter KS 601 (2024)
orCall +31 73 54 42500
Description
Cloth cutter
Kolbus: KS 601
Year: 2024
Slitting and cross cutting machine for roll material.
Suitable for the processing of calico, linen, leatherette, wax cloth, gauze, shirting, PVC and other similar coated materials.
Standard equipment:
- main drive with servo drive

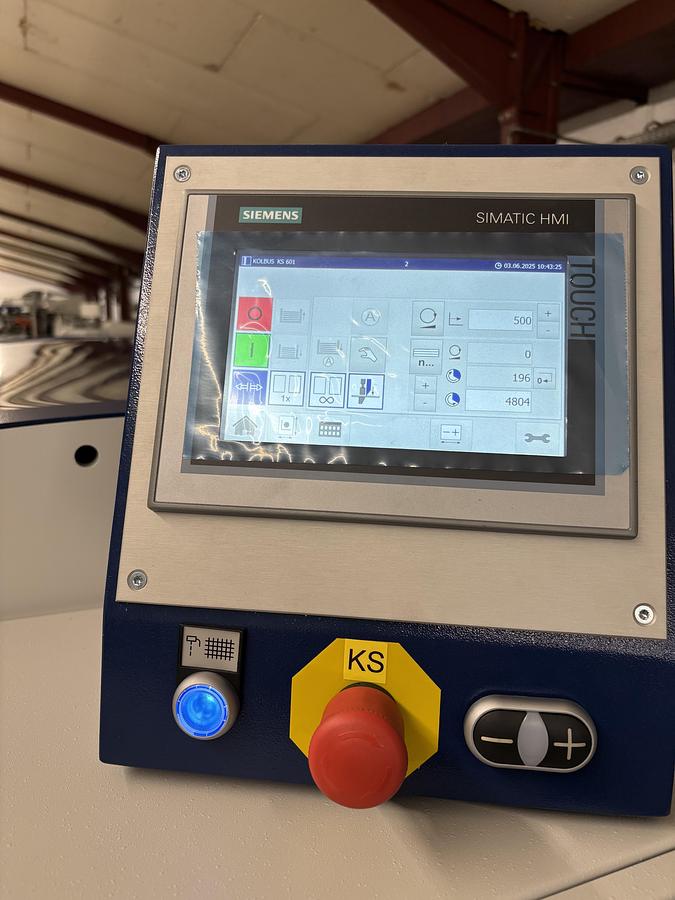

- operating desk for standard and inching operation including speed adjustment
- moveable material mounting shafts
Special equipment:

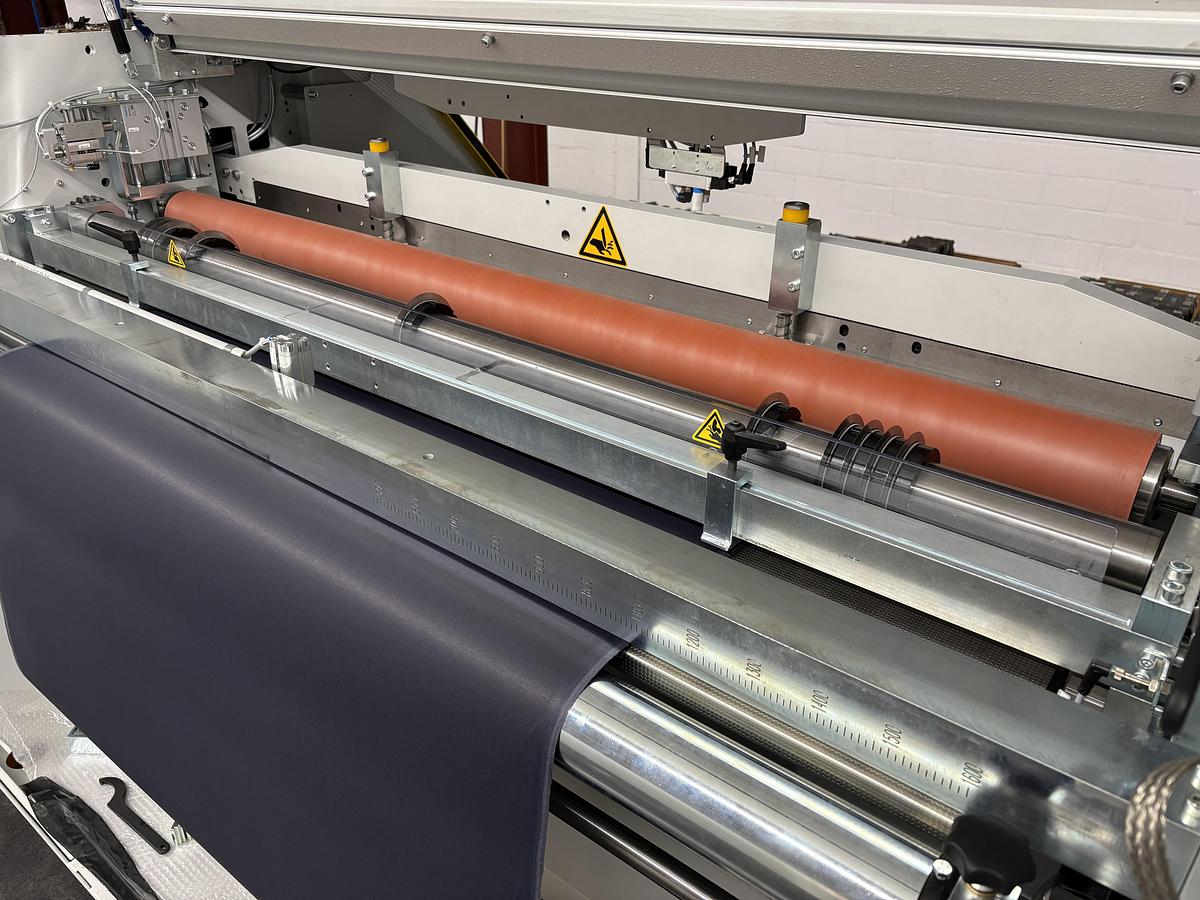

- cross cutting module and split cutting module with 10 circular knives
- deposit delivery
Technical specifications:
Mechanical speed: up to 50 cuts/min
Material width max.: 1.600 mm
Cutting width max.: 1.524 mm
Cutting width min.: 50 mm
Length of cut max.: 1.100 mm
Length of cut min.: 100 mm
