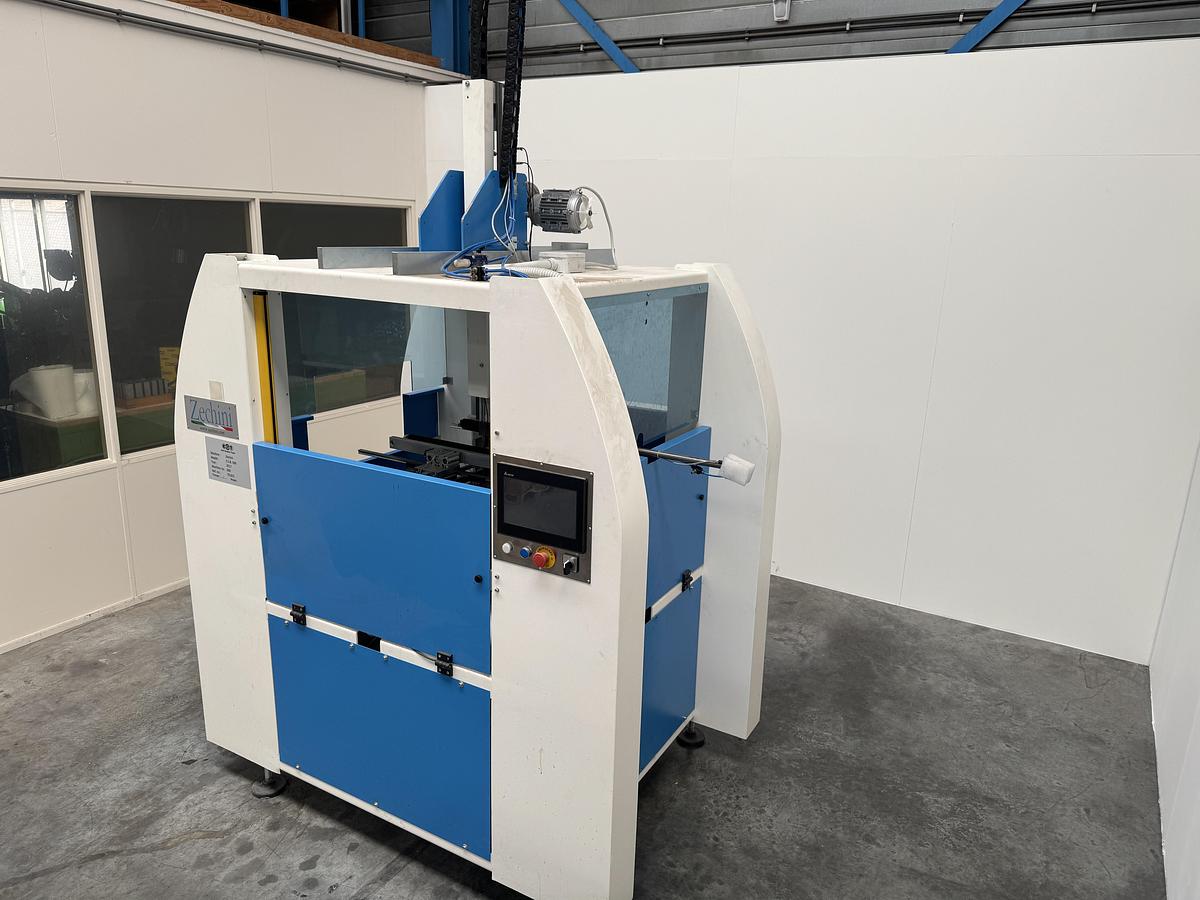

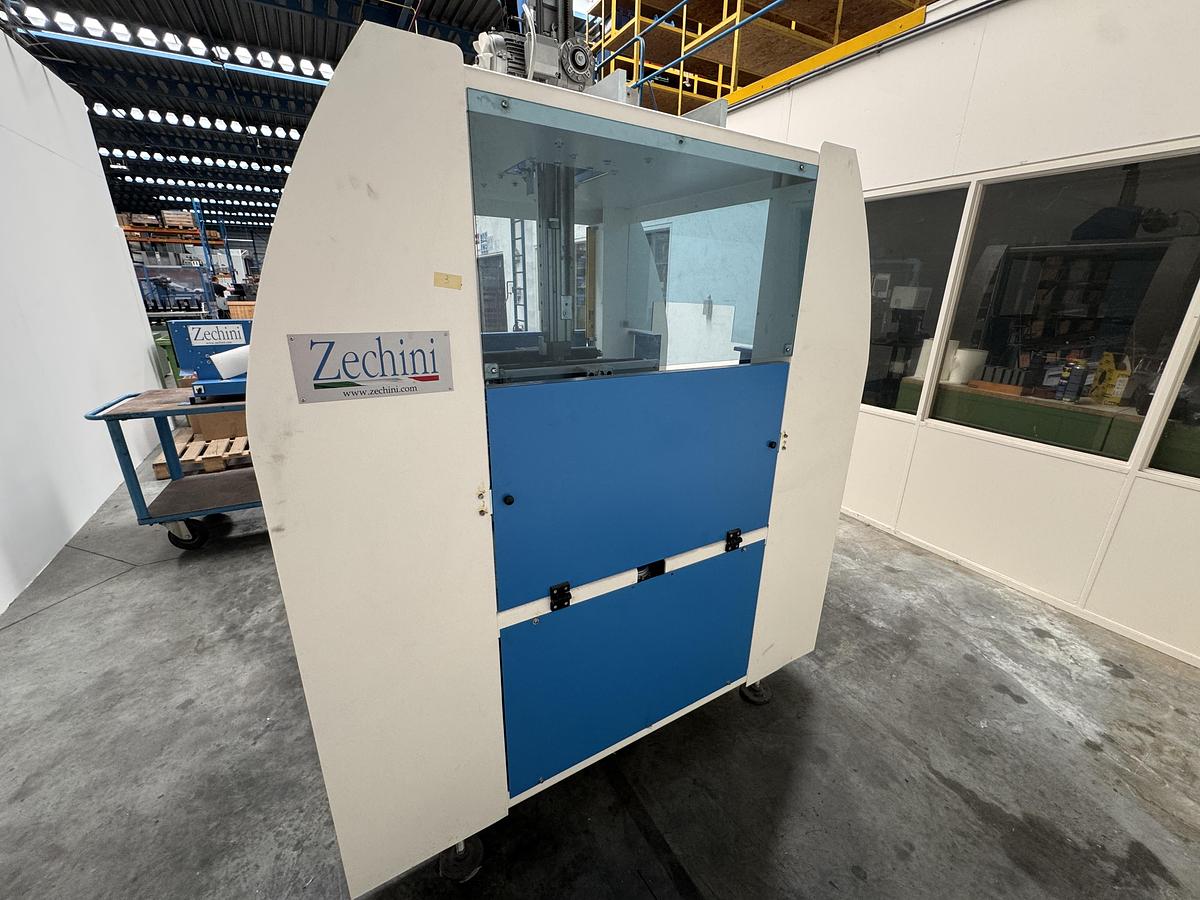

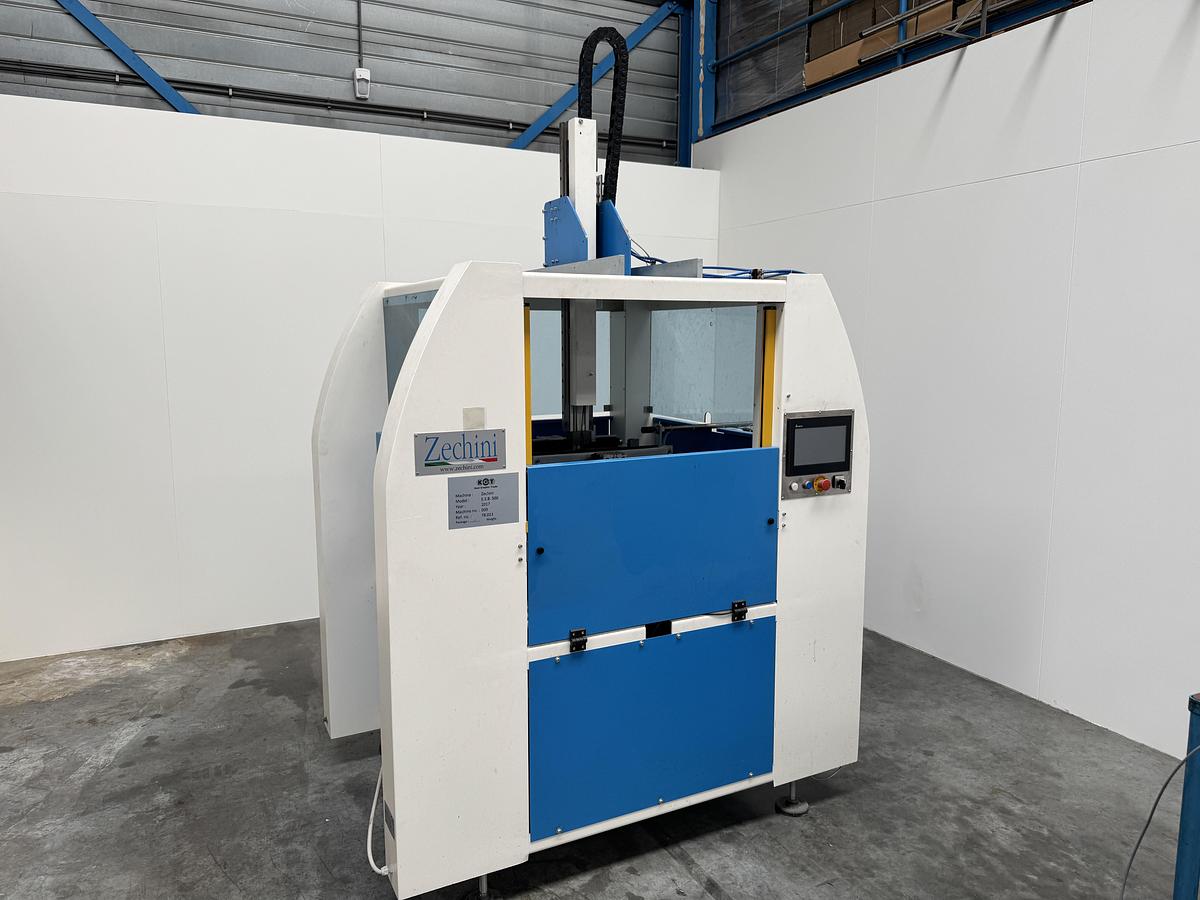

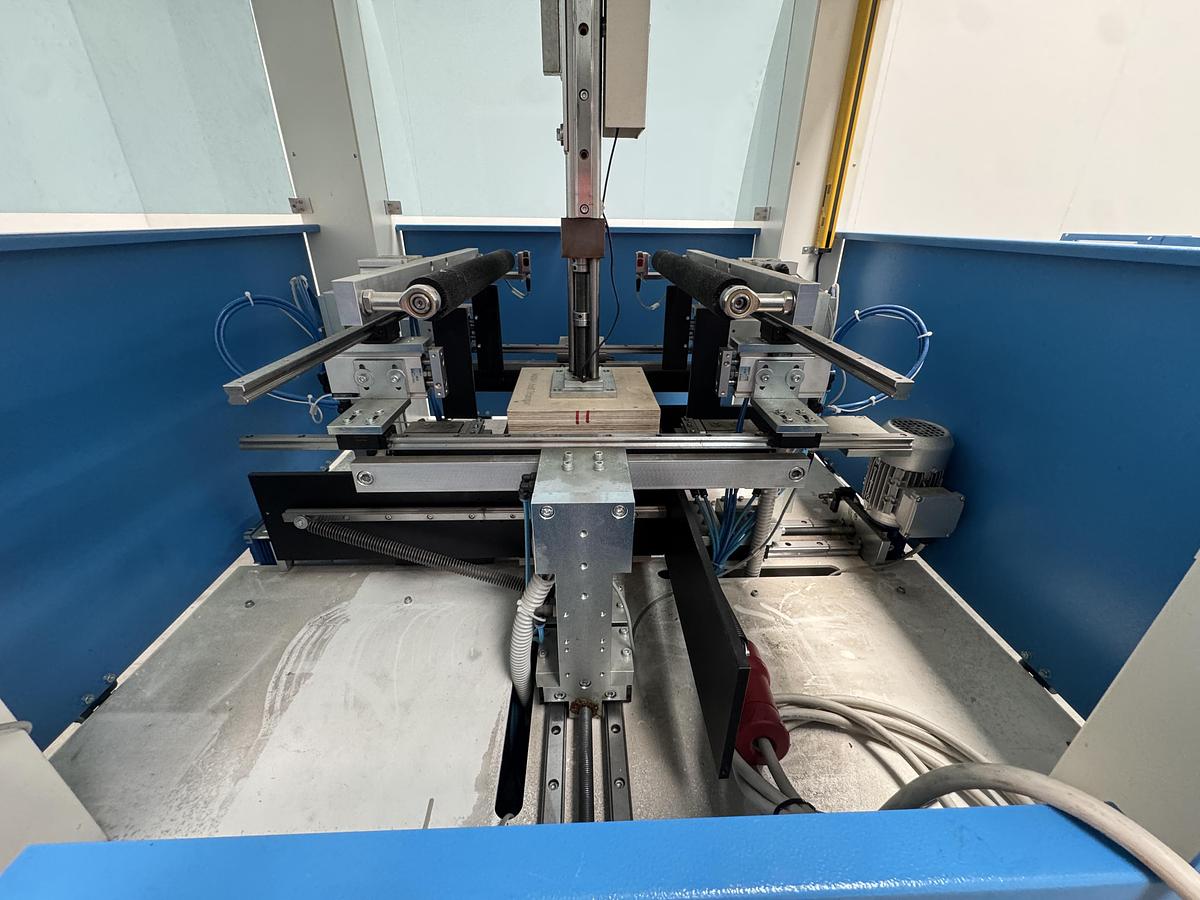

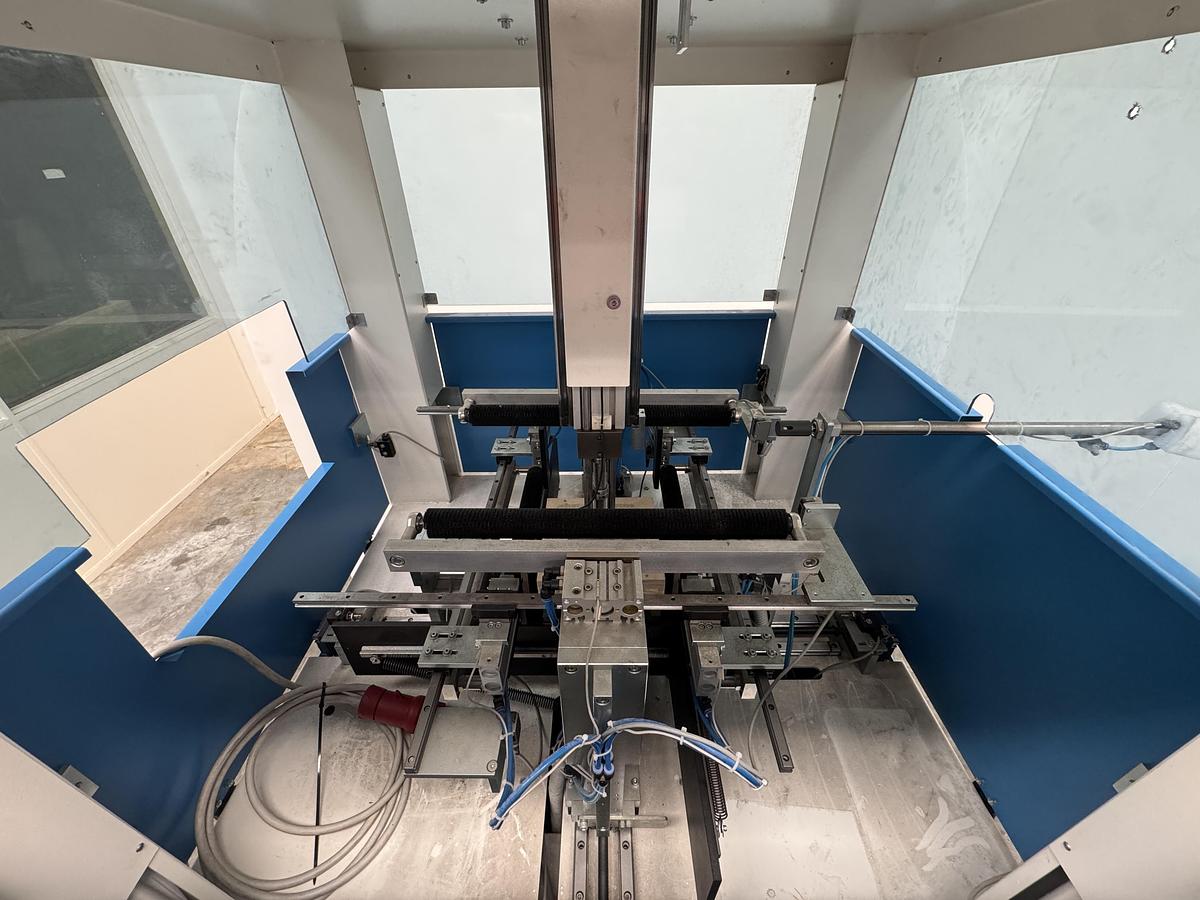

Zechini E.S.B. 500 (2017)

The Zechini ESB 500 is a high-performance automatic box wrapping machine engineered for the efficient production of premium rigid boxes. Designed to meet the exacting standards of luxury packaging industries, this machine ensures consistent quality, precision finishing, and streamlined workflow.

The ESB 500 automatically covers pre-assembled cardboard cores by precisely folding, tucking, and overlapping wrapping materials onto the box structure, delivering a flawless external finish.

Technical specifications:

Box Height                     :       20 – 150 mm

Box Width                     :       95 – 450 mm

Box Length                     :       95 – 500 mm

Board Thickness                :       1,2 – 3 mm

Max. Mechanical Speed        :       400 cycles/h.

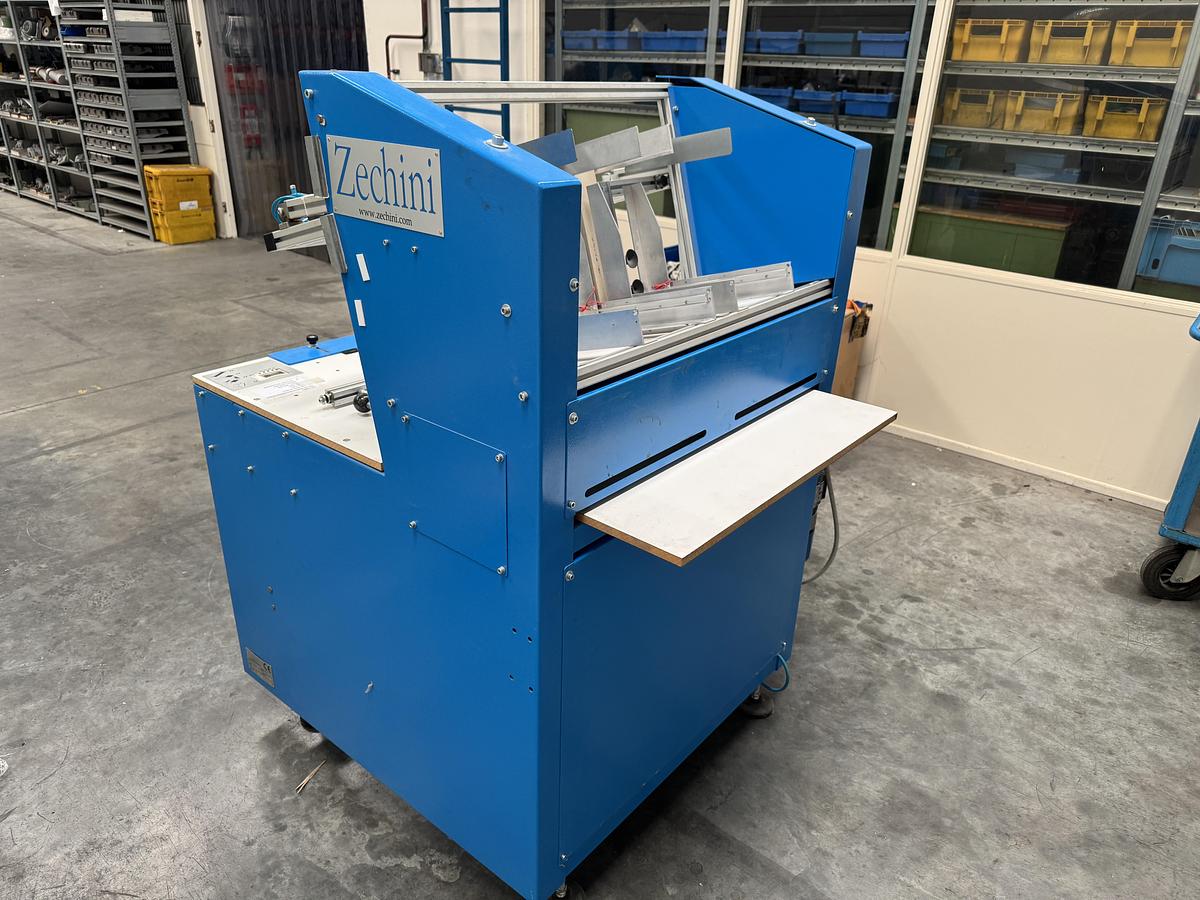

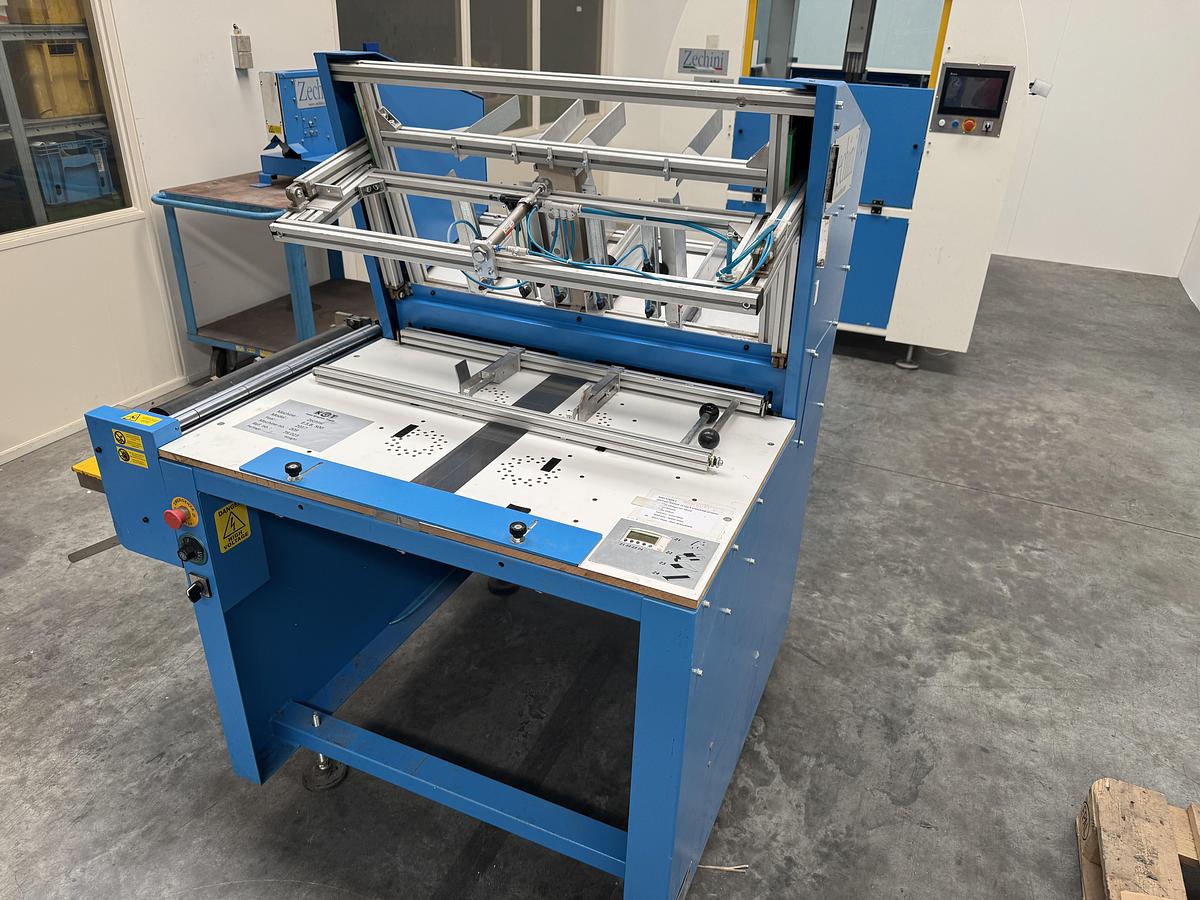

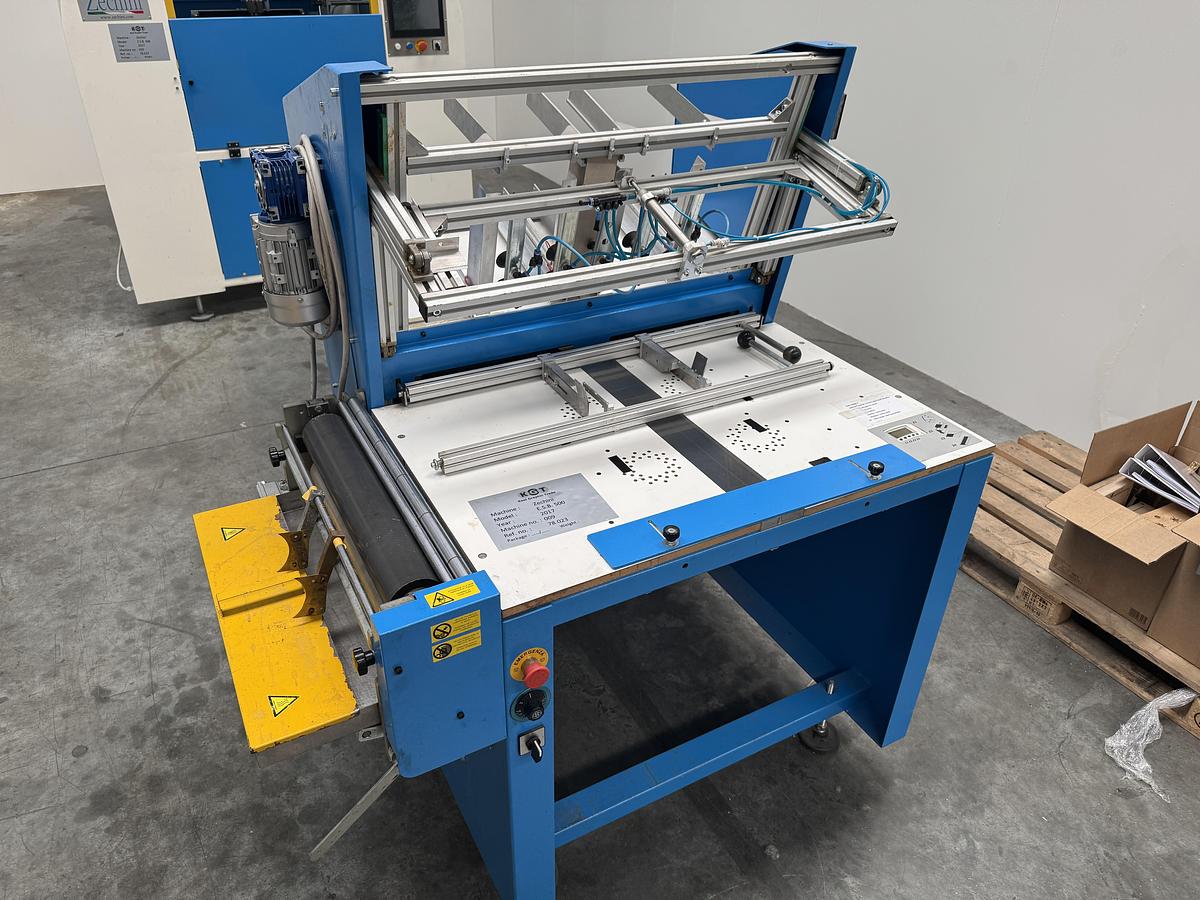

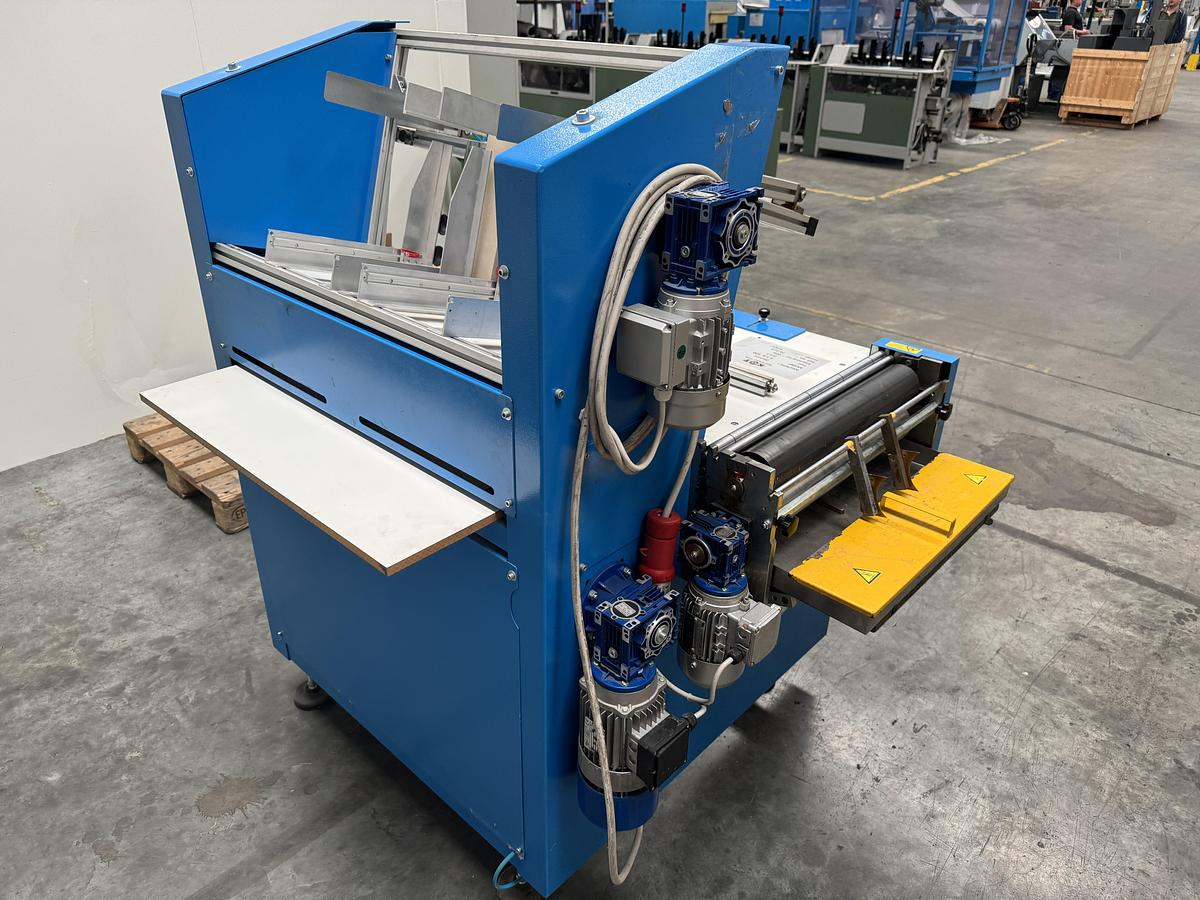

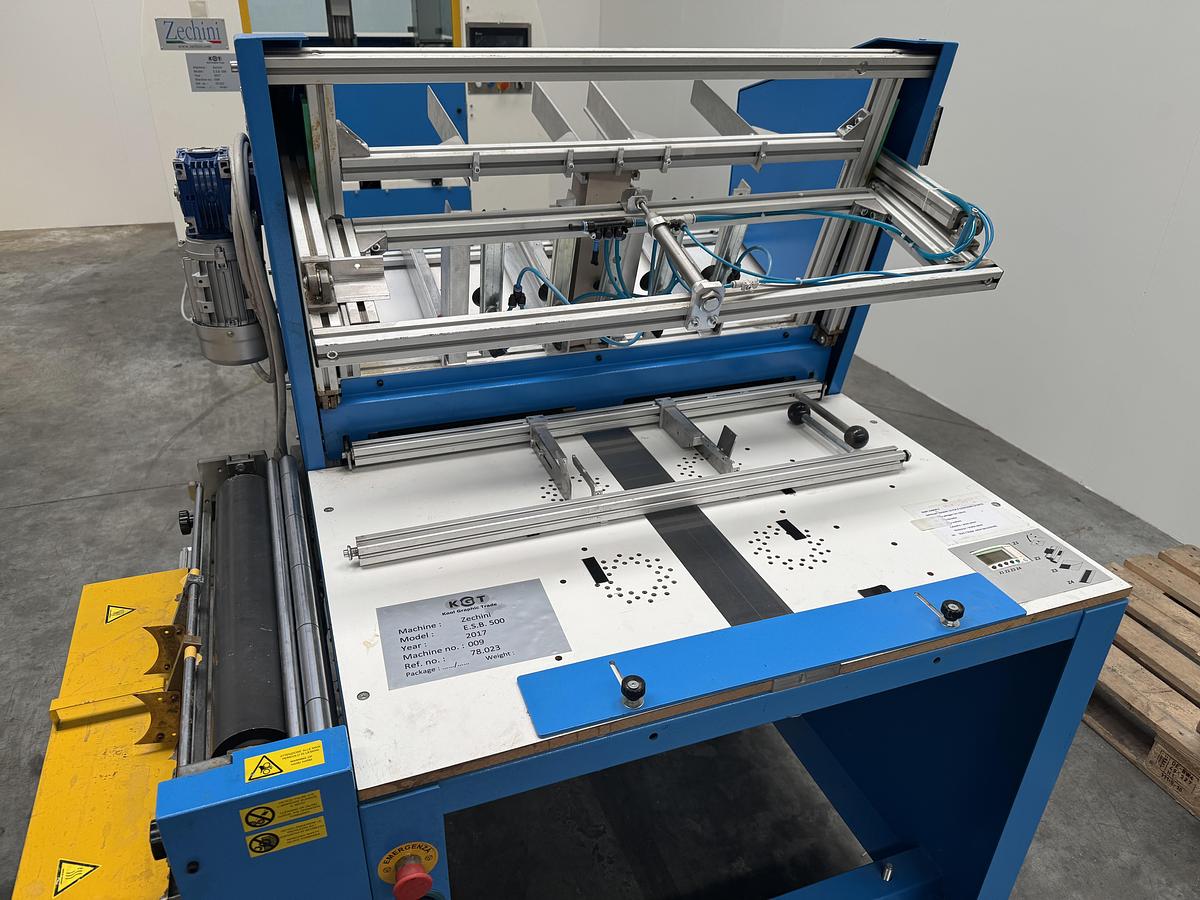

Zechini Roby Junior 2 Casemaker

Roby Junior 2 is compact and versatile semi-automatized case maker suitable both for short and medium runs and can produce a gluing unit integrated in the machine in order to save floor space and the walking effort. Usually used with hot, animal glue, the unit can also be used with cold, vinyl glue.

Technical specifications:

Max. Board Size                :       500 x 700 mm

Min. Board Size                :       140 x 140 mm

Max. Cover Material Size       :       540 x 740 mm

Board Thickness                :       1,5 – 3 mm

Max. Mechanical Speed        :       250 cycles/h.

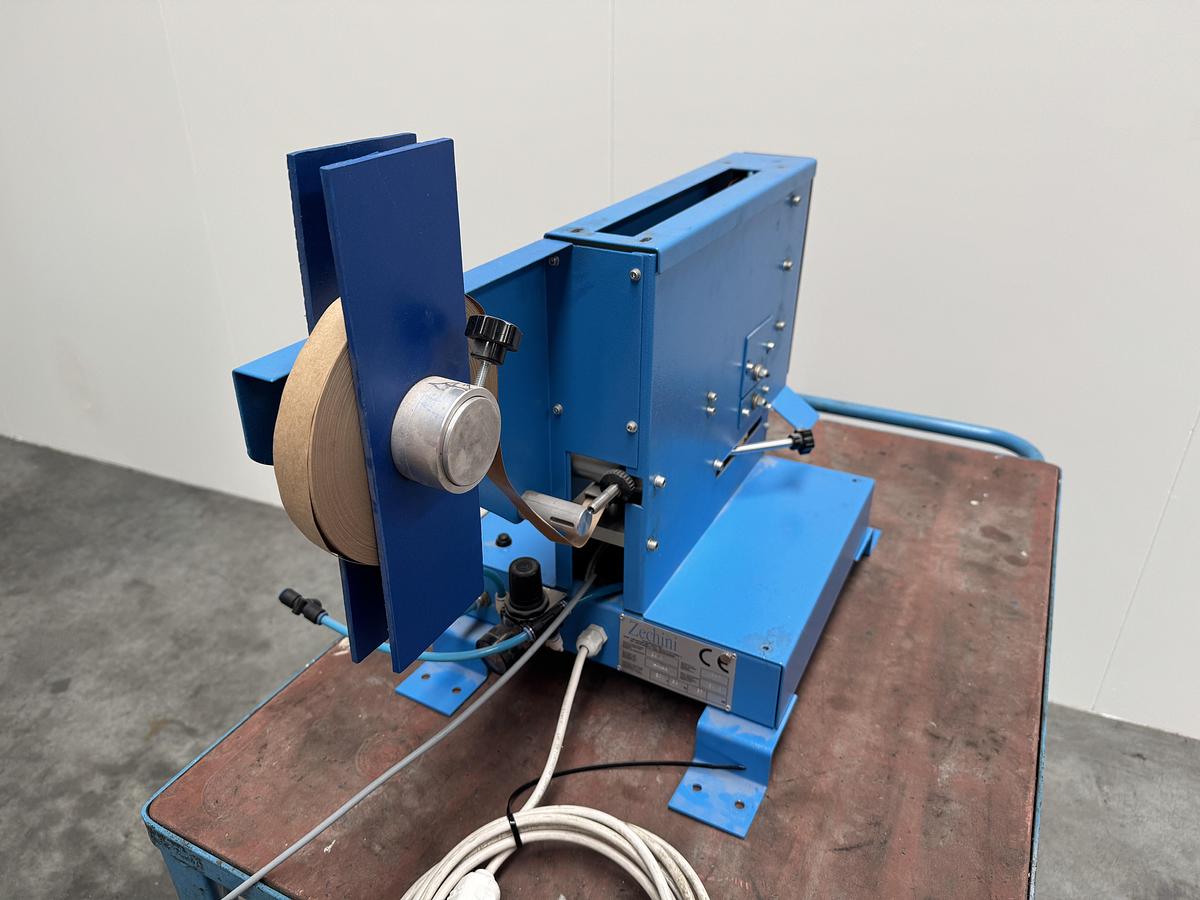

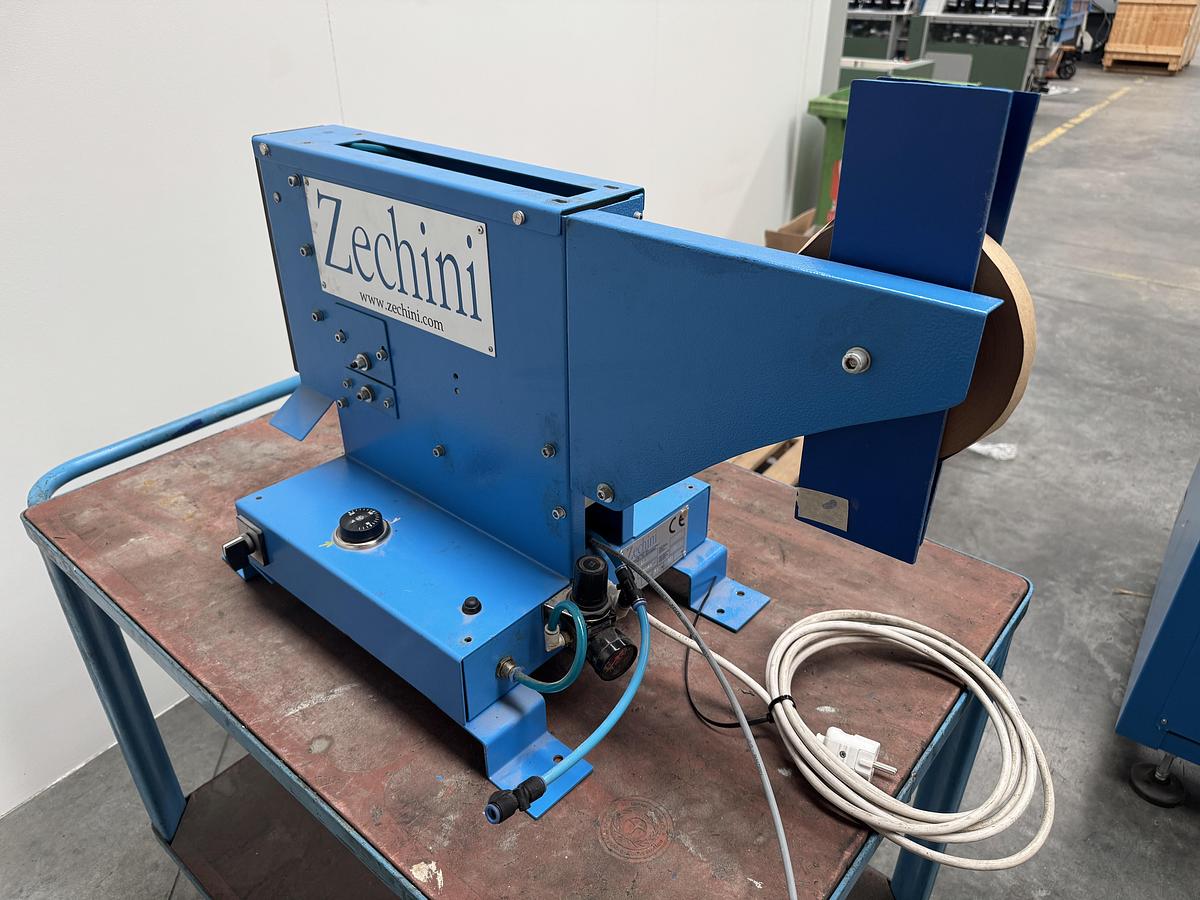

Zechini CT 150 Corner Tape Machine

The CT 150 is the machine to close the corners of the box by positioning heat-sealing stripes. The machine places the heat-sealing adhesive onto the corners to form the box.

Technical specifications:

Max. Box Height                :       150 mm

Min Box Size (L x W x H)        :       60 x 60 x 10 mm

Max. tape Width               :       22 mm

Max. Mechanical Speed        :       300 cycles/h.
