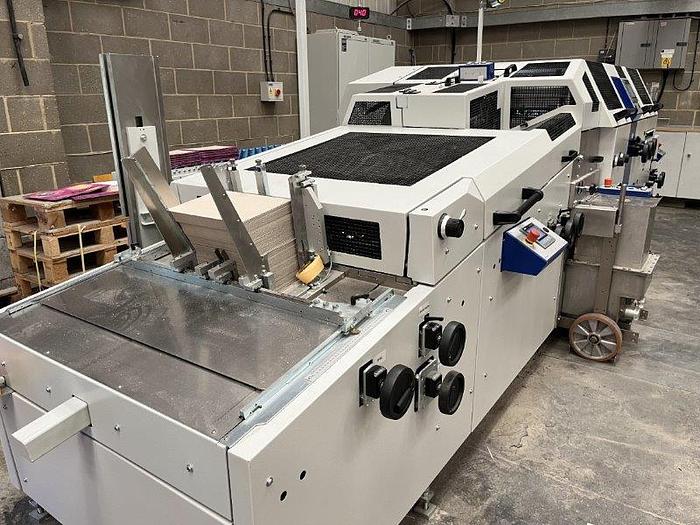

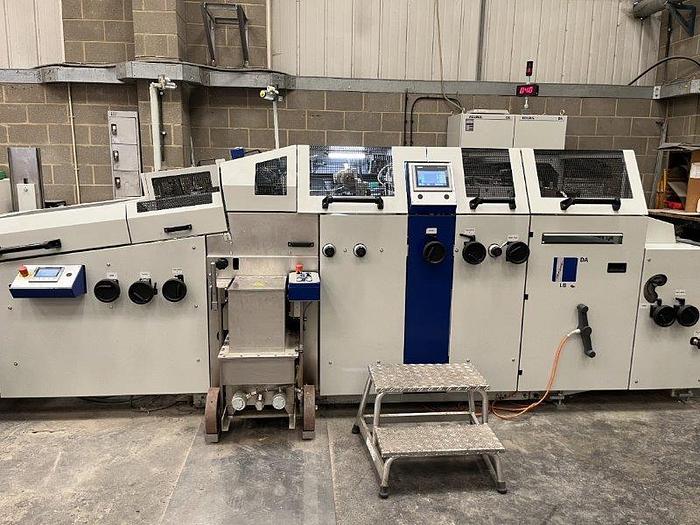

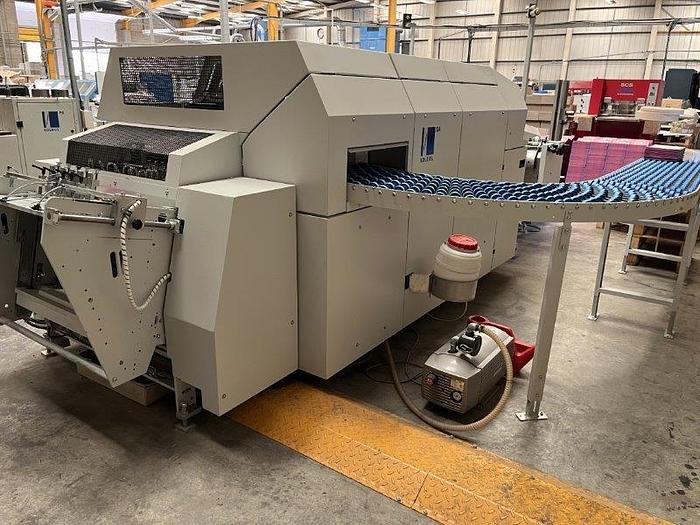

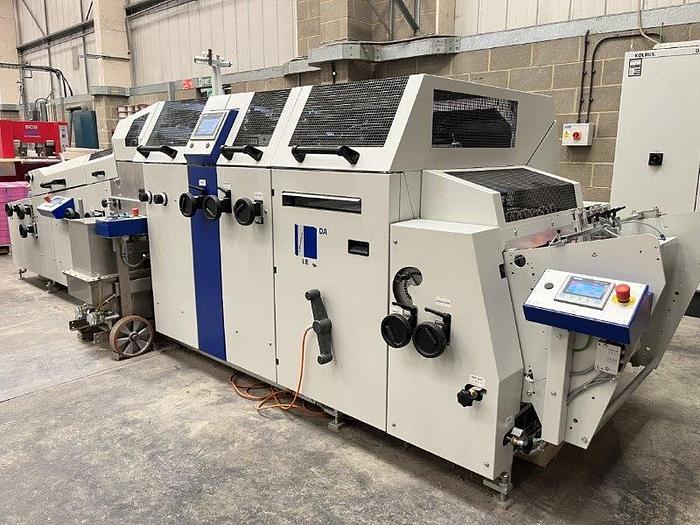

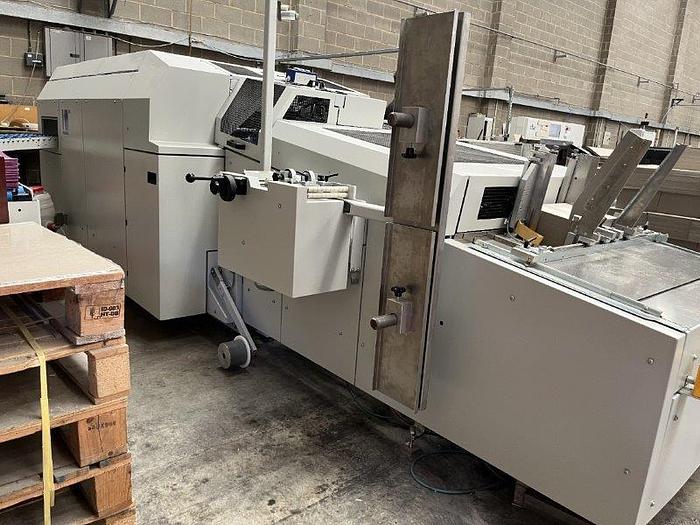

Kolbus case maker DA 260 (2018)

Case maker

Kolbus DA 260

Year: 2018

For fully automatic production of book cases, files, display cards, calendar backs or game boards.

Description:

- Co-Pilot with touchscreen

- Semi automatic setting

- Board magazin for manual loading

- Board cutter

- Centre strip infeed (stiff)

- Centre strip infeed (flexible)

- Cloth feeder

- Glue unit

- Viscosity control

- Device for inside lining with hotmelt

- Device for producing quarter-bound cases in 2 passes

- Device for producing padded cases

- Pressing station

- Stacking delivery

Optional equipment (not included)

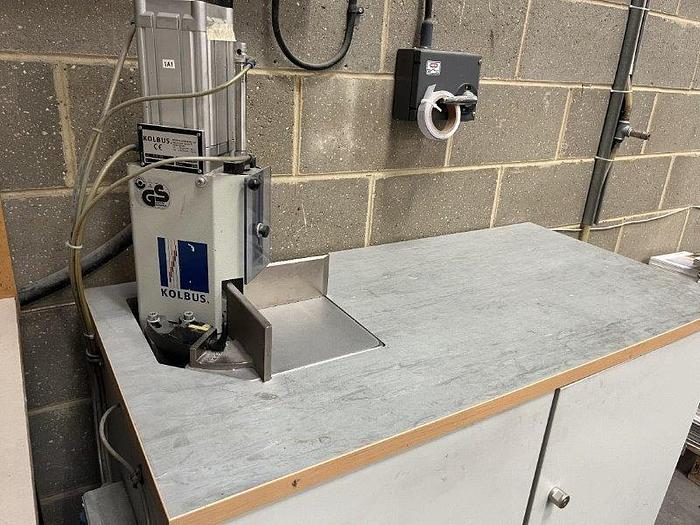

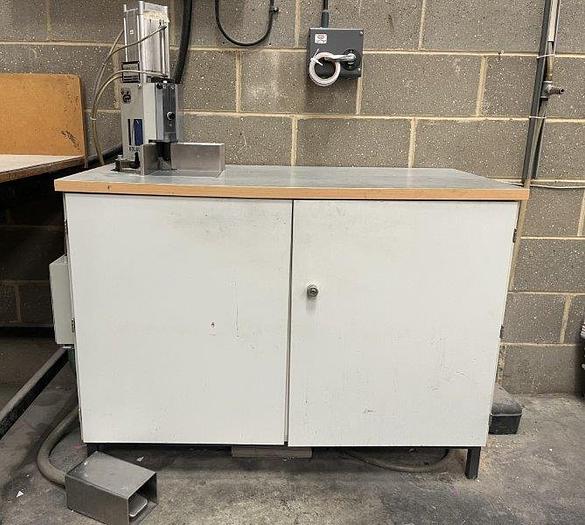

Kolbus ECK 100

Year: 2004

- Corner cutter, electrical

Technical specifications:

Maximum mechanical speed up to 40 cycles/min

Max. open cover size: 670 x 390 mm

Min. open cover size: 205 x 140 mm

Joint width: 4 - 15 mm

Spine width: 14 - 120 mm

Turn in width closed: 8 - 15 mm

Cloth width: 223 - 708 mm

Cloth height: 130 - 428 mm

Boards thickness: 1 - 4 mm

Boards width: 95 - 328 mm

Boards height: 140 - 390 mm

Board centre strip thickness: 1 - 4 mm

Board centre strip width: 6 - 90 mm

Centre strip roll thickness: 0,3 - 0,6 mm

Centre strip roll width: 6 - 90 mm

 Inside lining dependent width: 195 - 670 mm

 to the glue processing height: 130 - 390 mm
